Name: Double Ended Spring Loaded Pin for Automated Test Equipment (ATE)
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Rumah > Produk > Probe pengujian musim semi >

Double Ended Spring Loaded Pin for Automated Test Equipment (ATE)

Tempat asal:

Cina

Nama merek:

WINNER

Sertifikasi:

ISO9100

Hubungi Kami

Minta Kutipan

Double Ended Spring Loaded Pin for Automated Test Equipment (ATE)

Rincian produk

Nama Produk:

probe uji pegas

barel:

PB, Palpal Emas

Plunger Bawah:

BeCu/SK4, berlapis emas

Pendorong ATAS:

SK4(Menjadi Cu)/Berlapis Emas

Musim semi:

SWPB(SUS)/Berlapis Emas

Tersedianya:

Ukuran khusus tersedia

Lapisan:

Berlapis emas

Peringkat Saat Ini:

Hubungi Resistensi:

maks 200 mohm

Bandwidth:

-4.66dB @ 6.0GHz

induktansi:

2,02nH

Kapten:

3,44pF

Stroke penuh:

6.0mm

Stroke berperingkat:

2.0mm

Kekuatan pegas:

40gram@2.0mm

Kehidupan Mekanik Melebihi:

200k

Syarat Pembayaran & Pengiriman

Kuantitas min Order

3000pcs

Harga

999

Kemasan rincian

Pengepakan netrial atau dengan logo OEM

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C, Western Union, T/T

Menyediakan kemampuan

100000 gulungan per bulan

Produk terkait

Double Ended Spring Loaded Pin for Automated Test Equipment (ATE)

Dapatkan Harga Terbaik

Precision Pogo Pin Probe Double Ended for Electronic Testing

Dapatkan Harga Terbaik

Probe Uji Pegas Pogo Pin Dua Ujung Presisi Tinggi untuk ICT & FCT

Dapatkan Harga Terbaik

China Supplier Double Ended Pogo Pin Spring Loaded Probe untuk Pengujian PCB

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

YOUFU UF-FT131FB330-001 Dual Head Spring Loaded Pogo Pins

High precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities for semiconductors and SiC wafers.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission

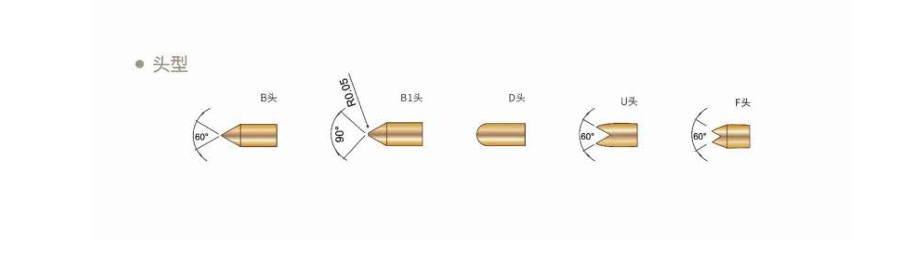

Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

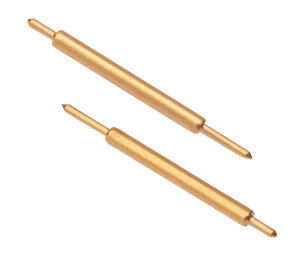

Product Images

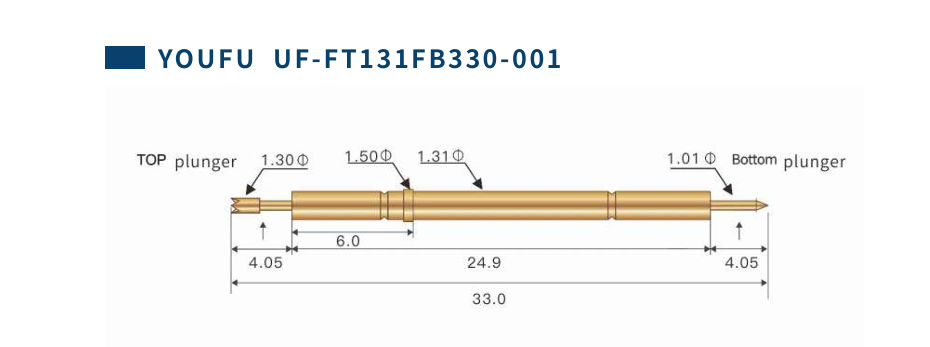

Detailed Component Illustration

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process
