Name: Gold Plated Tungsten Wire Gold Plating On Tungsten Line Thread String
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
SKU: TW011
Price: 999 USD
Availability: InStock

Rumah > Produk > Kawat Tungsten Lapis Emas >

Gold Plated Tungsten Wire Gold Plating On Tungsten Line Thread String

gold plated tungsten wire thread

gold plating tungsten line string

tungsten wire with gold plating

Nama merek:

WINNER

Sertifikasi:

ISO9100

Nomor model:

TW011

Hubungi Kami

Minta Kutipan

Rincian produk

Jenis Produk:

Kawat ikatan

Ketebalan Lapisan:

0,0003mm

Bahan:

Tungsten

Lapisan:

Emas

Meter panjang:

500/1000

Metode ikatan:

ultrasonik

Kisaran Suhu:

-40 ° C hingga 200 ° C.

Permukaan Selesai:

Terang

Daya konduksi:

98%

Ukuran Paket:

100 meter

Kekuatan Obligasi:

Tinggi

Kemasan:

Kumparan

Menyoroti:

gold plated tungsten wire thread

gold plating tungsten line string

tungsten wire with gold plating

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

999

Kemasan rincian

Gulung, pengepakan neutrial atau dengan logo OEM

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C, Western Union, T/T

Menyediakan kemampuan

100000 gulungan per bulan

Produk terkait

Kawat Filamen Tungsten Mikron Berlapis Emas Kemurnian Tinggi Tersedia dengan Harga Terjangkau

Dapatkan Harga Terbaik

Video

Gold Plated Tungsten Wire Gold Plating On Tungsten Line Thread String

Dapatkan Harga Terbaik

Video

Ultra Premium Gold Plated Micron Tungsten Wire For Electronic And Scientific Research

Dapatkan Harga Terbaik

High-frequency Customized Diameter Gold Plated Coated Tungsten Spooled Wire

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

Product Description

Gold is the most commonly used thin coating material and does not chemically react under normal conditions. Gold and tungsten have exactly the same density, but their mechanical properties and melting temperatures vary.The most common way to combine the two is to plate gold on the tungsten wire to form a very thin gold-plated layer, which can improve the wettability during welding, prevent chemical corrosion, reduce the secondary emission of electrons, and achieve good performance. electrical contact and conductivity. Gold-plated tungsten wires have the advantages of good tensile strength, strong wear resistance, good plasticity, strong durability, superior oxidation resistance and low production cost.

Product Specifications

Material	Tungsten
Purity	Wu≥ 99.99%
Gold-plated thickness	0.3um
Wire diameter	0.02mm/0.03mm/0.04mm/0.05mm/0.06mm/0.07mm/0.1mm/0.2mm
Length	1000/2000 meter (cut from roll)

Gold plated tungsten wire properties (Theoretical)
Compound Formula	W
Molecular Weight	183.84
Appearance	Metallic wire
Melting Point	3410 °C
Boiling Point	5660 °C
Density	19.3 g/cm3 (25 °C)
Solubility in H2O	N/A
Electrical Resistivity	4.9 μΩ-cm, (20 °C)
Exact Mass	183.951 g/mol
Monoisotopic Mass	183.951 g/mol

Key Features

Shiny golden surface condition - brighter than black or white tungsten wire
Exceptional high temperature resistance and high melting point
Low coefficient of thermal expansion
Superior corrosion resistance compared to ordinary tungsten wire

Applications

Gold-plated tungsten wire serves as an electrode in photocopiers, replacing corrosion-resistant tungsten wire and tungsten aluminum wire. It also functions as an ideal corrosion-resistant electron emission material with applications in high-energy physics, meteorology, and other scientific research fields.

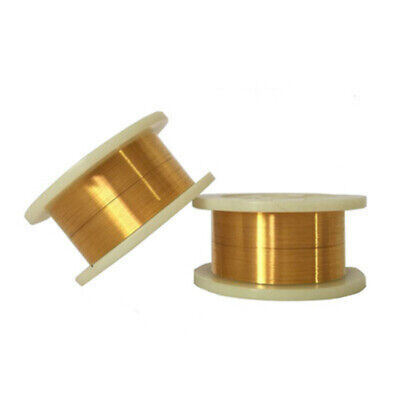

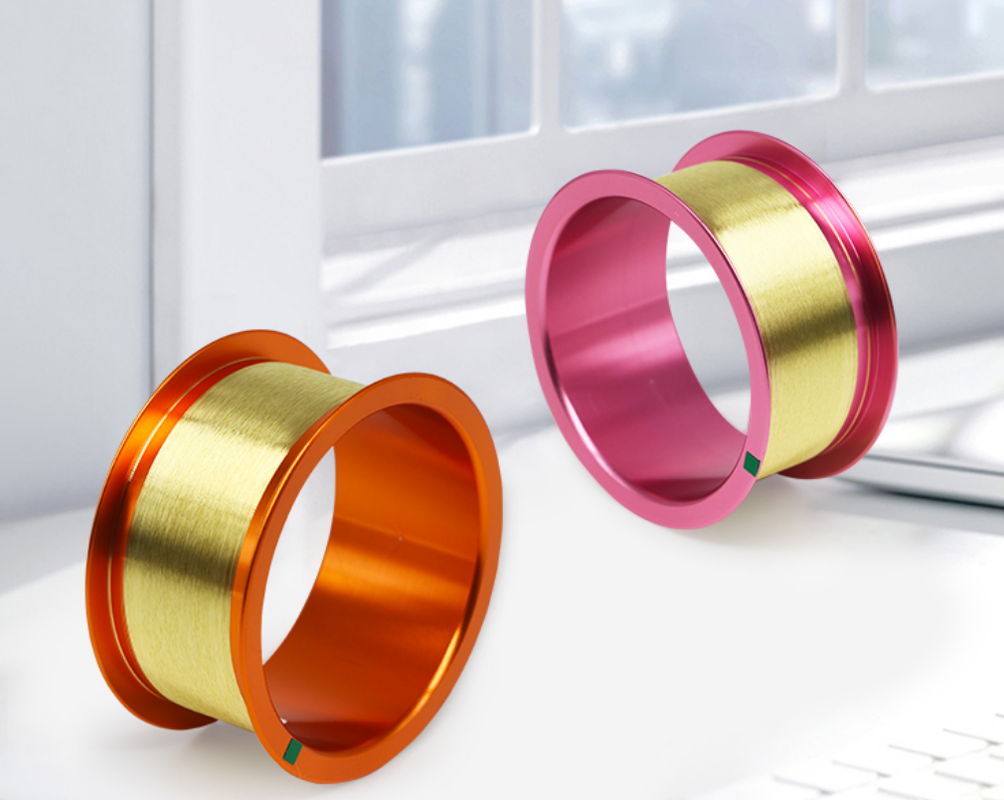

Product Images
