0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor

0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor

ultra fine gold plated tungsten wire

high oxidation resistance micro conductor

0.003mm gold plated tungsten wire

Nama merek:

WINNER

Sertifikasi:

ISO9100

Nomor model:

TW011

Hubungi Kami
Minta Kutipan
0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor
0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor 0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor 0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor 0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor
Rincian produk
Ketebalan lapisan:
0,0003mm
Bahan:
Tungsten
Diameter Kawat:
0,02mm/0,03mm/0,04mm/0,05mm/0,06mm/0,07mm/0,1mm/0,2mm
Panjang:
1000/2000 meter
Titik lebur:
3410 °C
Titik didih:
5660 °C
Kepadatan:
19,3 g/cm3
Resistivitas Listrik:
4,9 μΩ-cm
Menyoroti:

ultra fine gold plated tungsten wire

,

high oxidation resistance micro conductor

,

0.003mm gold plated tungsten wire

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
999
Kemasan rincian
Gulung, pengepakan neutrial atau dengan logo OEM
Waktu pengiriman
5-8 hari kerja
Syarat-syarat pembayaran
L/C, Western Union, T/T
Menyediakan kemampuan
100000 gulungan per bulan
Produk terkait
Harga yang bagus OEM ODM 0.003mm Ultra Fine Gold Coated Tungsten Wire For Micro Medical Industry on line Video

OEM ODM 0.003mm Ultra Fine Gold Coated Tungsten Wire For Micro Medical Industry

Dapatkan Harga Terbaik
Harga yang bagus 0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor on line Video

0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor

Dapatkan Harga Terbaik
Harga yang bagus High Purity Tungsten 0.003mm Ultra Fine Gold Plated Wire Low Resistivity Micro Wire on line Video

High Purity Tungsten 0.003mm Ultra Fine Gold Plated Wire Low Resistivity Micro Wire

Dapatkan Harga Terbaik
Harga yang bagus 0.003mm Micro Gold Plated Tungsten Wire Manufacturer Custom Precision Alloy Wire on line Video

0.003mm Micro Gold Plated Tungsten Wire Manufacturer Custom Precision Alloy Wire

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi Produk
0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor
Excellent high oxidation and corrosion resistance, fine and smooth surface, reliable performance as micro conductor in high-temperature and harsh working environment.
Product Specifications
Material Tungsten
Purity Wu≥ 99.99%
Gold-plated thickness 0.3um
Wire diameter 0.02mm/0.03mm/0.04mm/0.05mm/0.06mm/0.07mm/0.1mm/0.2mm
Length 1000/2000 meter (cut from roll)
Gold Plated Tungsten Wire Properties (Theoretical)
Compound Formula W
Molecular Weight 183.84
Appearance Metallic wire
Melting Point 3410 °C
Boiling Point 5660 °C
Density 19.3 g/cm³ (25 °C)
Solubility in H₂O N/A
Electrical Resistivity 4.9 μΩ-cm, (20 °C)
Exact Mass 183.951 g/mol
Monoisotopic Mass 183.951 g/mol
Key Features
  • Shiny golden surface condition - brighter than black or white tungsten wire
  • Exceptional high temperature resistance and high melting point
  • Low coefficient of thermal expansion
  • Superior corrosion resistance compared to ordinary tungsten wire
Applications
  • Electrode in photocopiers, replacing corrosion-resistant tungsten wire and tungsten aluminum wire
  • Ideal corrosion-resistant electron emission material
  • Applications in high-energy physics, meteorology, and other scientific research fields
Product Images
0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor 0

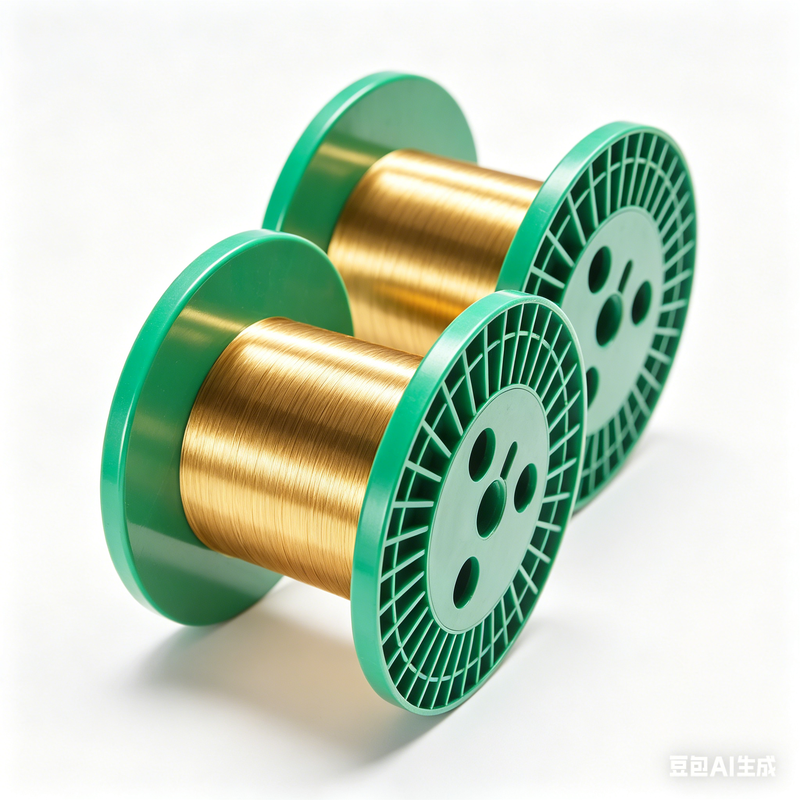

Gold-plated tungsten wire roll close-up
0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor 1

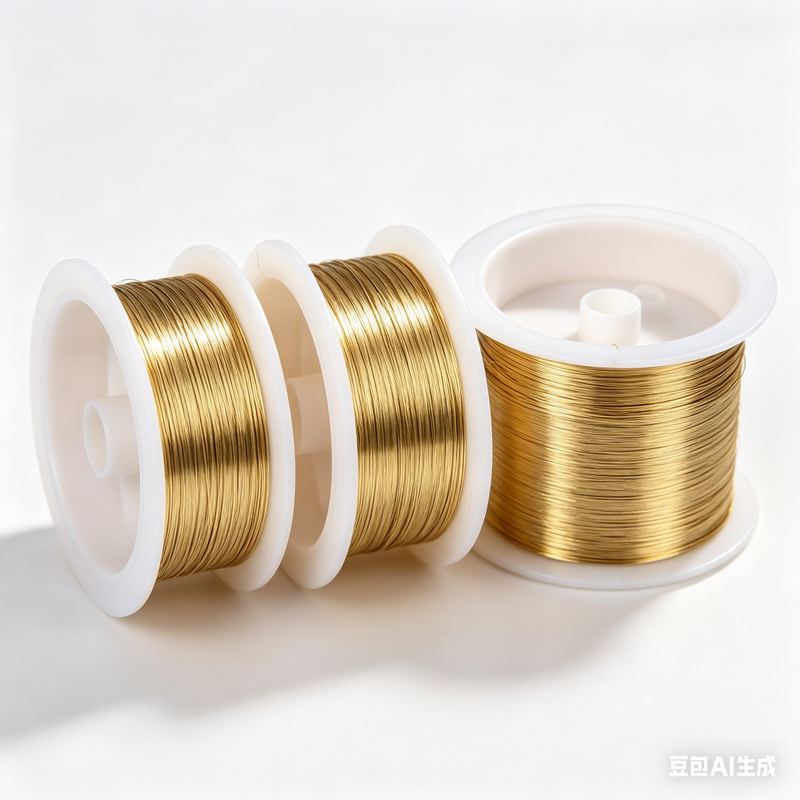

Gold-plated tungsten wire sample
0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor 2
Diameter comparison showing various thicknesses
0.003mm Ultra Fine Gold Plated Tungsten Wire High Oxidation Resistance Micro Conductor 3

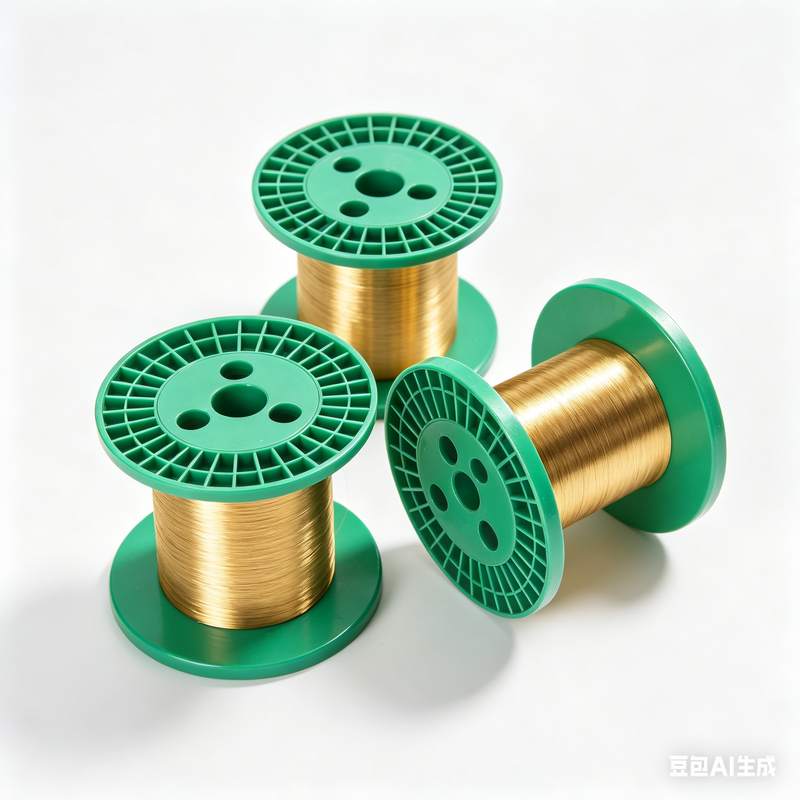

Spool packaging
