Precision-Engineered Gold Plated Spring Test Probe with 80g Spring Force and 1A Current Ration for PCB Testing

Precision-Engineered Gold Plated Spring Test Probe with 80g Spring Force and 1A Current Ration for PCB Testing

brass spring plungers for PCB

pogo pin test probe with warranty

keyboard battery charger spring probe

Tempat asal:

CINA

Nama merek:

WINNER

Sertifikasi:

ISO9100

Hubungi Kami
Minta Kutipan
Precision-Engineered Gold Plated Spring Test Probe with 80g Spring Force and 1A Current Ration for PCB Testing Precision-Engineered Gold Plated Spring Test Probe with 80g Spring Force and 1A Current Ration for PCB Testing Precision-Engineered Gold Plated Spring Test Probe with 80g Spring Force and 1A Current Ration for PCB Testing Precision-Engineered Gold Plated Spring Test Probe with 80g Spring Force and 1A Current Ration for PCB Testing Precision-Engineered Gold Plated Spring Test Probe with 80g Spring Force and 1A Current Ration for PCB Testing Precision-Engineered Gold Plated Spring Test Probe with 80g Spring Force and 1A Current Ration for PCB Testing Precision-Engineered Gold Plated Spring Test Probe with 80g Spring Force and 1A Current Ration for PCB Testing
Rincian produk
Nama Produk:
probe uji ukuran standar
Penyelam:
BeCu
barel:
Kuningan
Musim semi:
Baja tahan karat
Tersedianya:
Ukuran khusus tersedia
Lapisan:
Berlapis emas
MOQ:
100 buah
Menyoroti:

brass spring plungers for PCB

,

pogo pin test probe with warranty

,

keyboard battery charger spring probe

Syarat Pembayaran & Pengiriman
Kuantitas min Order
3000pcs
Harga
999
Kemasan rincian
Pengepakan netrial atau dengan logo OEM
Waktu pengiriman
5-8 hari kerja
Syarat-syarat pembayaran
L/C, Western Union, T/T.
Menyediakan kemampuan
100000 gulungan per bulan
Produk terkait
Harga yang bagus Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Semiconductor Testing on line

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Semiconductor Testing

Dapatkan Harga Terbaik
Harga yang bagus Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Semiconductor Testing on line

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Semiconductor Testing

Dapatkan Harga Terbaik
Harga yang bagus High Quality Switch Contact Pin Test Probe YF DE1-038BF32-01C0 on line

High Quality Switch Contact Pin Test Probe YF DE1-038BF32-01C0

Dapatkan Harga Terbaik
Harga yang bagus Gold Plated High Durability Spring Test Probe on line

Gold Plated High Durability Spring Test Probe

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi Produk
Gold Plated Spring Contact Probes for ICT & PCB Testing
Precision-engineered gold plated contact probe pins designed for reliable PCB and ICT testing applications. Our ultra-sharp pogo pin probes ensure accurate test results in demanding electronic testing environments.
Product Specifications
Specification Value
Pitch 1.0mm
Mounting hole size 0.75mm
Full travel 2.0
Spring force 80g
Current ration 1A
Current resistance 50mΩ
MOQ 100PCS
Payment T/T
Delivery time 5-10 days after receiving payment
Test Probe Selection Guide
Test probes are available from many manufacturers with similar constraints. When selecting a test probe receptacle, the tip choice is the most critical consideration.
Precision-Engineered Gold Plated Spring Test Probe with 80g Spring Force and 1A Current Ration for PCB Testing 0

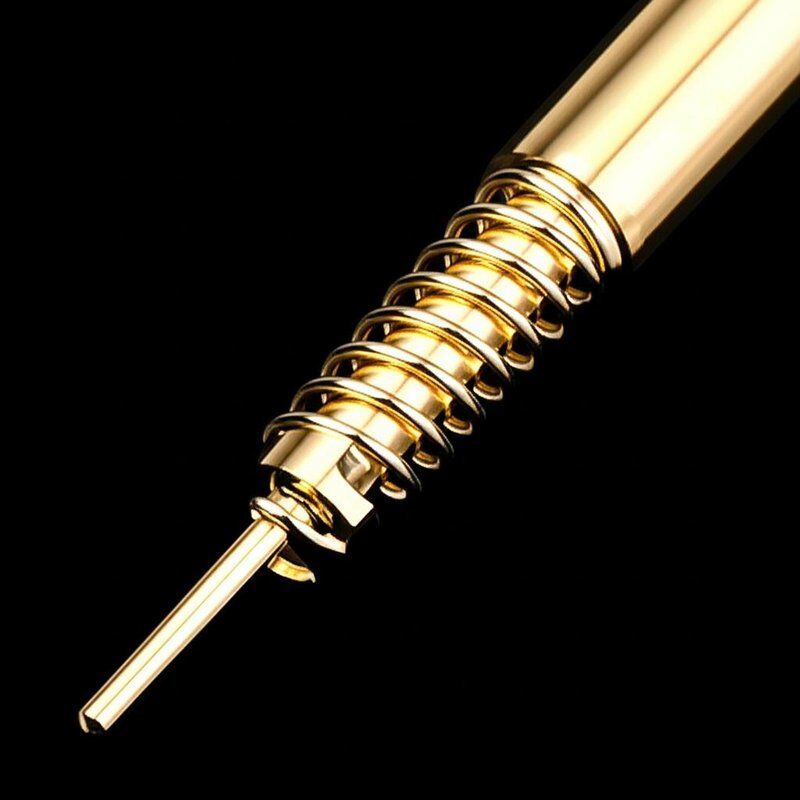

Detailed illustration of test probe components and construction
Precision-Engineered Gold Plated Spring Test Probe with 80g Spring Force and 1A Current Ration for PCB Testing 1

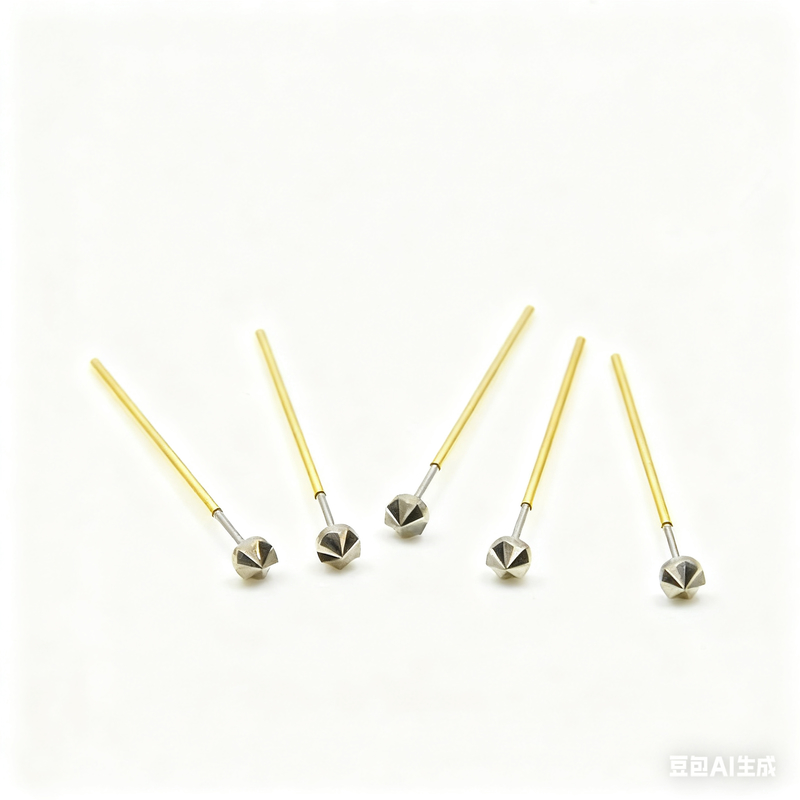

Various test probe tip types
Customization Options
At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include: Material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.
Precision-Engineered Gold Plated Spring Test Probe with 80g Spring Force and 1A Current Ration for PCB Testing 2
Our probe manufacturing facility
Precision-Engineered Gold Plated Spring Test Probe with 80g Spring Force and 1A Current Ration for PCB Testing 3
Quality control inspection
Precision-Engineered Gold Plated Spring Test Probe with 80g Spring Force and 1A Current Ration for PCB Testing 4

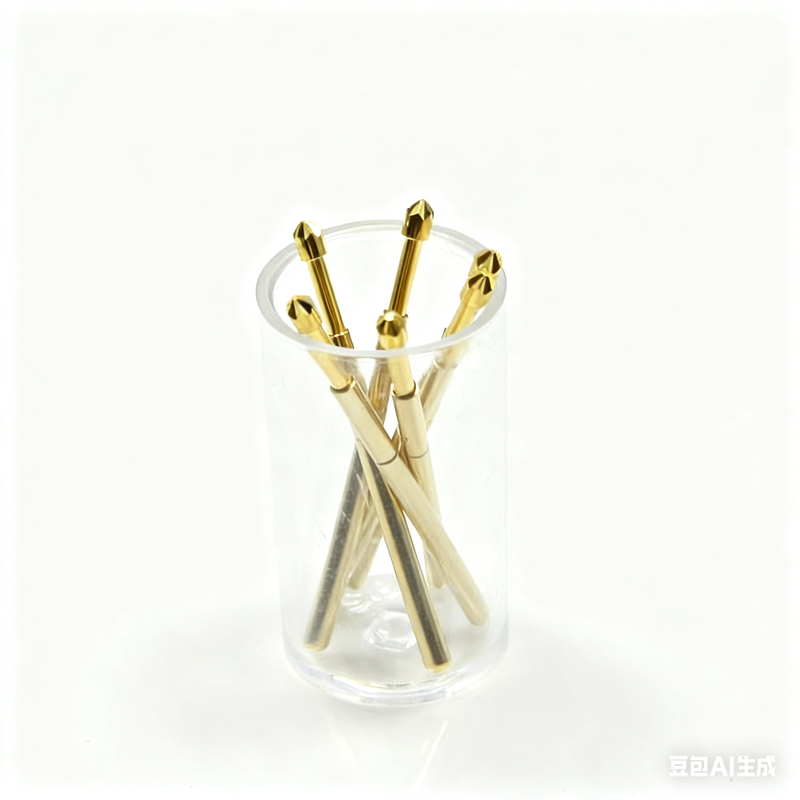

Packaged probes ready for shipment
