Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications

Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications

6.4mm Full Stroke Spring Test Probe

4.3mm Rated Stroke Pogo Pin

1.0N Spring Force ICT Test Probe

Tempat asal:

Tiongkok

Nama merek:

WINNER

Sertifikasi:

ISO9100

Hubungi Kami
Minta Kutipan
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications
Rincian produk
Nama Produk:
probe uji ukuran standar
Penyelam:
BeCu/SK4, berlapis emas
barel:
Perunggu, berlapis emas
Musim semi:
SWP, Au di Ni memucat
Tersedianya:
Ukuran khusus tersedia
Lapisan:
Berlapis emas
MOQ:
3000pcs
Wadah:
Berlapis emas kuningan
Peringkat saat ini:
3Amps
Kontak Resistance:
maks 50 jutahms
Stroke penuh:
6.4mm
Stroke berperingkat:
4.3mm
Angkatan Musim Semi:
1.0n
CEM1:
1.0mm(.039)
FR4:
1.0mm(.039)
Standar:
-40℃-+80℃
Desain Khusus "C":
-100℃-+200℃
Menyoroti:

6.4mm Full Stroke Spring Test Probe

,

4.3mm Rated Stroke Pogo Pin

,

1.0N Spring Force ICT Test Probe

Syarat Pembayaran & Pengiriman
Kuantitas min Order
3000pcs
Harga
999
Kemasan rincian
Pengepakan netrial atau dengan logo OEM
Waktu pengiriman
5-8 hari kerja
Syarat-syarat pembayaran
L/C, Western Union, T/T
Menyediakan kemampuan
100000 gulungan per bulan
Produk terkait
Harga yang bagus Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications on line

Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications

Dapatkan Harga Terbaik
Harga yang bagus 2.36mm Spring Test Probe with 9 Claws and 100 Pcs Brass Barrel Spring Loaded Test Pin for Industrial Testing on line

2.36mm Spring Test Probe with 9 Claws and 100 Pcs Brass Barrel Spring Loaded Test Pin for Industrial Testing

Dapatkan Harga Terbaik
Harga yang bagus Custom Sizes Brass Barrel Stainless Steel Spring Test Probe for Precision PCB Testing on line

Custom Sizes Brass Barrel Stainless Steel Spring Test Probe for Precision PCB Testing

Dapatkan Harga Terbaik
Harga yang bagus 100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing on line

100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi Produk
Customized Brass Barrel Stainless Steel Spring Test Probe YF050 for In-Circuit-Test (ICT)

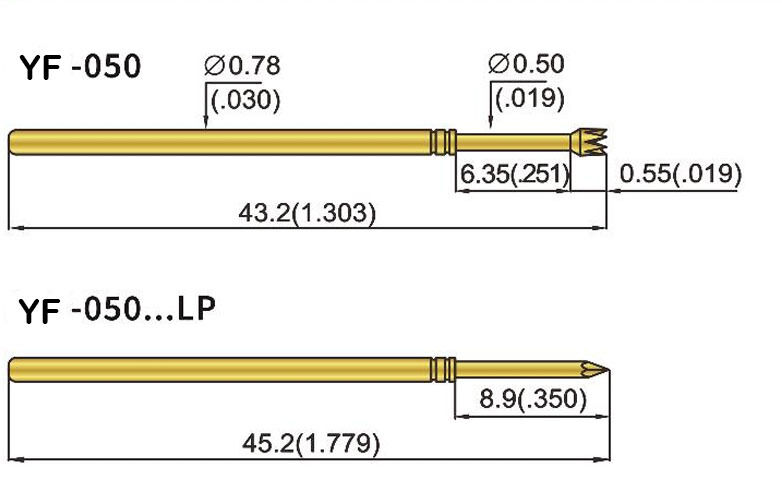

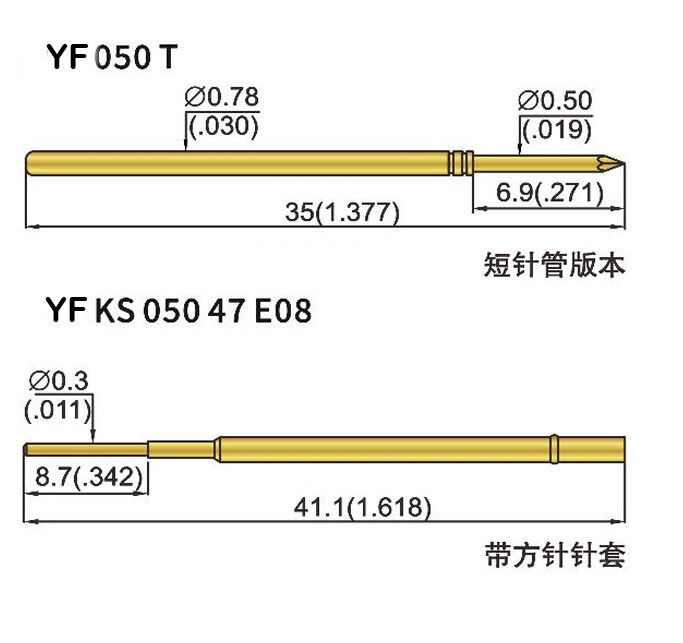

Production Specifications
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 0

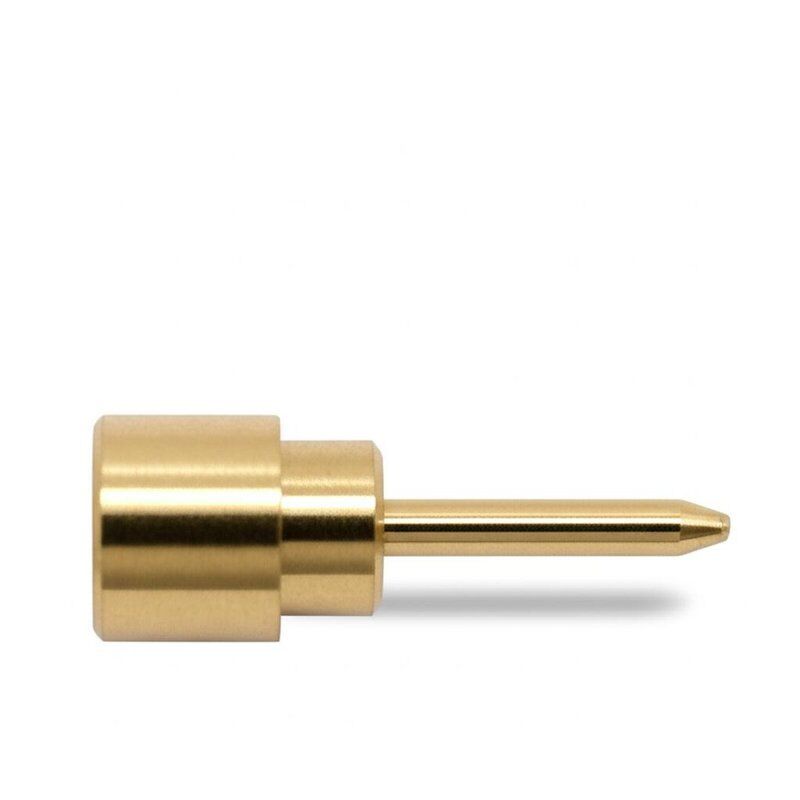

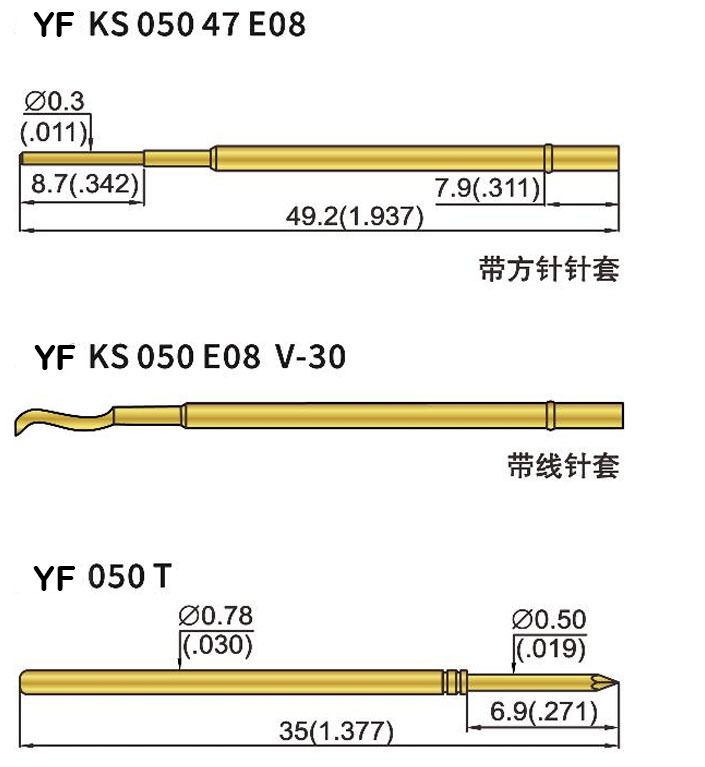

Product Images
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 1
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 2
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 3
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 4
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 5

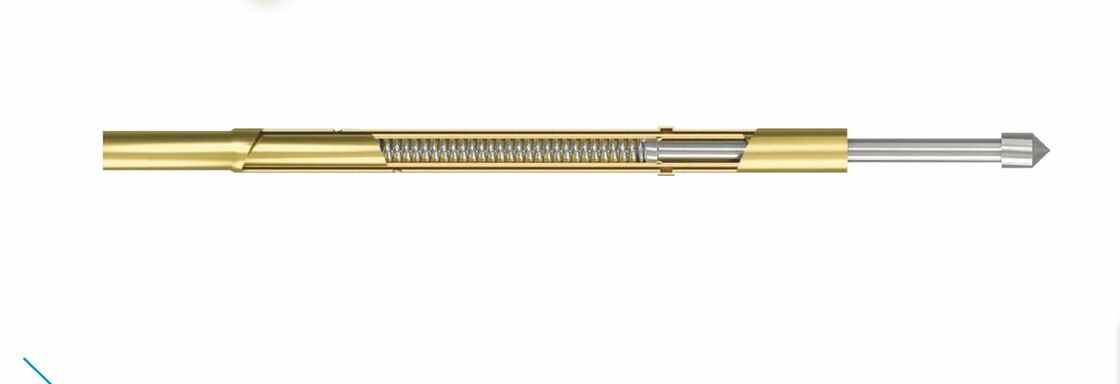

Detailed Component Illustration
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 6

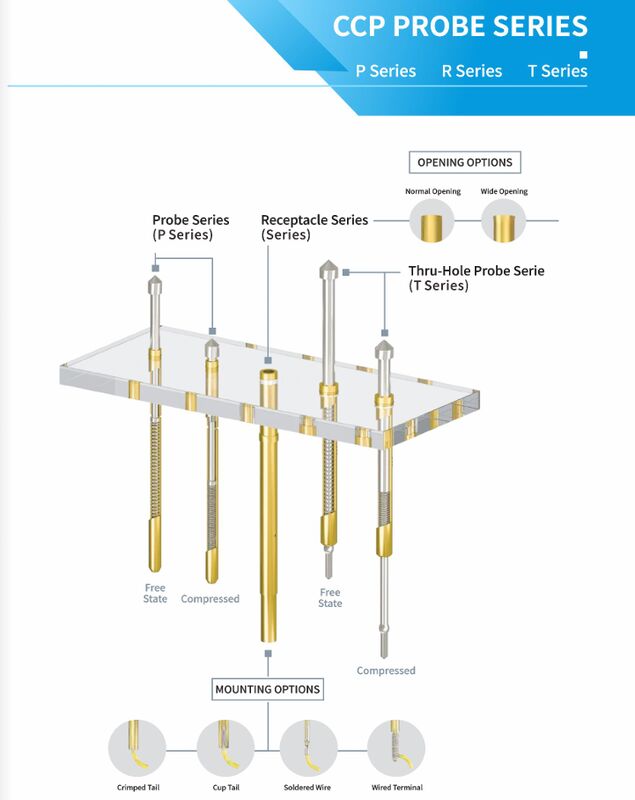

Comparison of different test probe tip types and configurations
Customization Options
At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.
Manufacturing Process
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 7
Our probe manufacturing facility
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 8
Quality control inspection
Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications 9
Packaged probes ready for shipment
