Rumah > Produk > Probe pengujian musim semi >
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance

Gold Plated Spring Test Probe

Brass Barrel Pogo Pin

0.5amps Current Rating ICT Test Probe

Tempat asal:

Tiongkok

Nama merek:

WINNER

Sertifikasi:

ISO9100

Hubungi Kami
Minta Kutipan
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance
Rincian produk
Nama Produk:
probe uji ukuran standar
Penyelam:
BeCu/SK4, berlapis emas
barel:
Perunggu, berlapis emas
Musim semi:
SWP, Au di Ni memucat
Tersedianya:
Ukuran khusus tersedia
Lapisan:
Berlapis emas
MOQ:
3000pcs
Wadah:
Berlapis emas kuningan
Peringkat saat ini:
0.5 Amper
Kontak Resistance:
maks 50 jutahms
Stroke penuh:
1,50MM
Stroke berperingkat:
1.00mm
Angkatan Musim Semi:
1.0/2.0/3.0N
CEM1:
0,40mm(.0.67)
FR4:
0,40mm(.0.69)
Standar:
-40℃-+80℃
Desain Khusus "C":
-100℃-+200℃
Menyoroti:

Gold Plated Spring Test Probe

,

Brass Barrel Pogo Pin

,

0.5amps Current Rating ICT Test Probe

Syarat Pembayaran & Pengiriman
Kuantitas min Order
3000pcs
Harga
999
Kemasan rincian
Pengepakan netrial atau dengan logo OEM
Waktu pengiriman
5-8 hari kerja
Syarat-syarat pembayaran
L/C, Western Union, T/T
Menyediakan kemampuan
100000 gulungan per bulan
Produk terkait
Harga yang bagus High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications on line

High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications

Dapatkan Harga Terbaik
Harga yang bagus China Supplier ICT test probe P048 on line

China Supplier ICT test probe P048

Dapatkan Harga Terbaik
Harga yang bagus Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT) on line

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT)

Dapatkan Harga Terbaik
Harga yang bagus Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing on line

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi Produk
Spring Contact Probe Spring Test Probe P075
Product Description

Customized Brass Barrel Stainless Steel Spring Test Probe P075 for In-Circuit-Test (ICT)

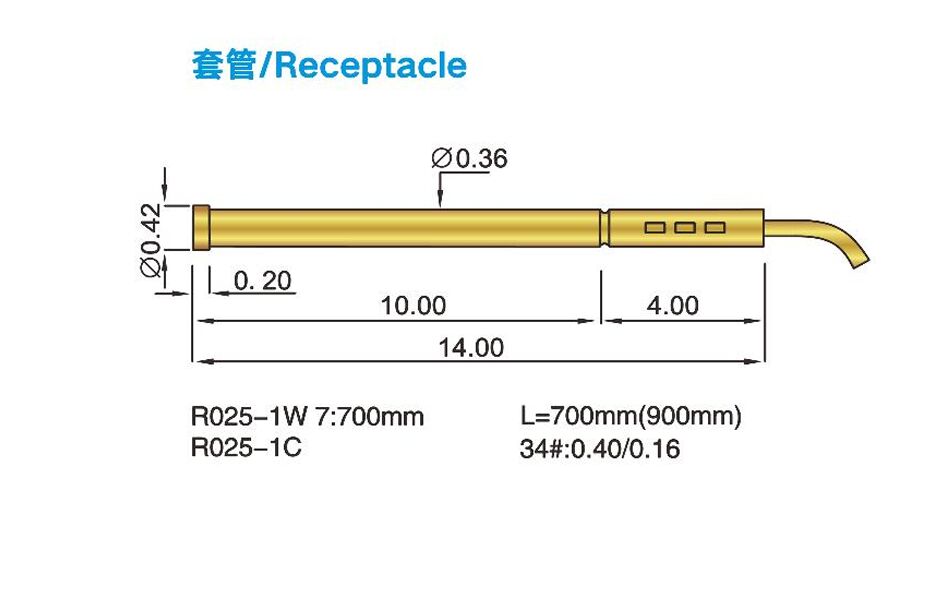

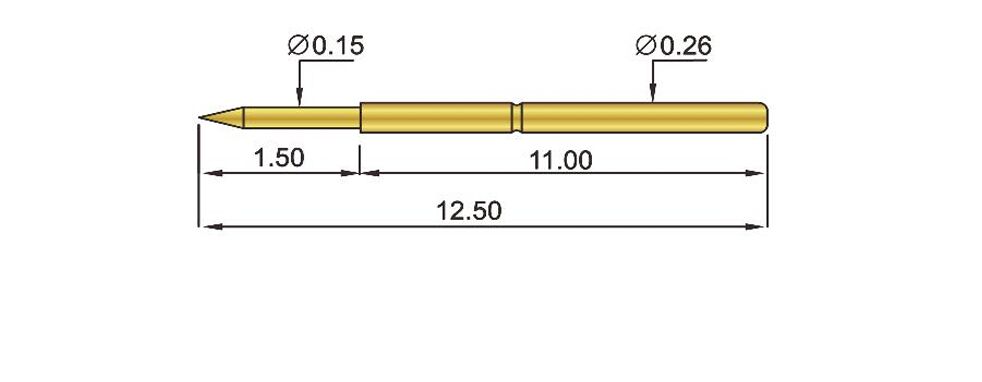

Production Specifications
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance 0

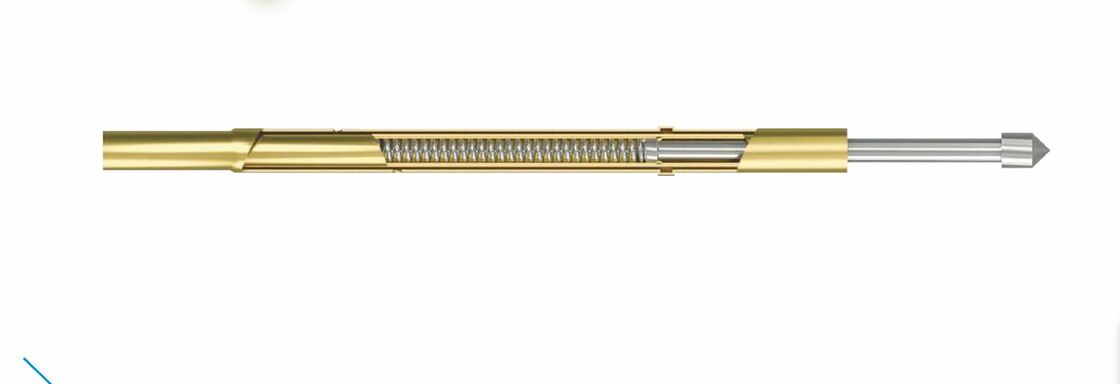

Product Images
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance 1 Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance 2

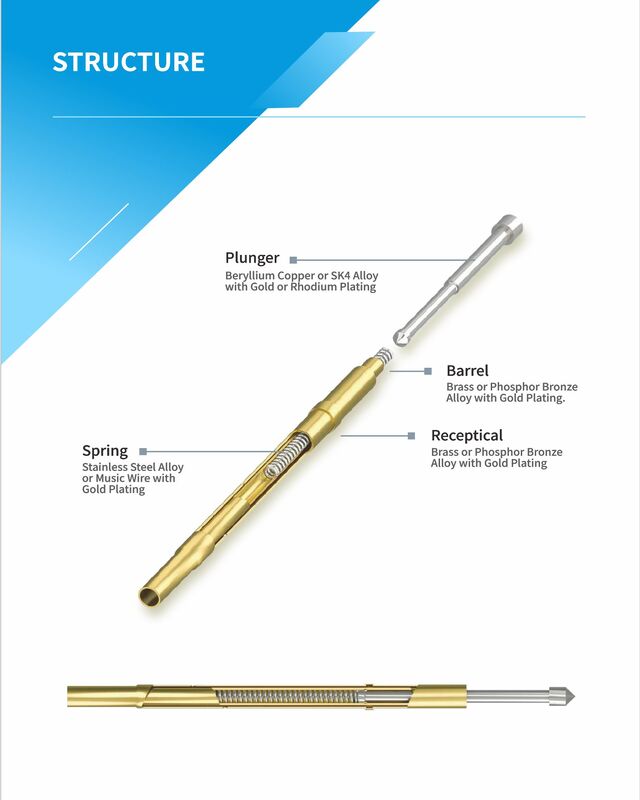

Detailed Component Illustration
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance 3

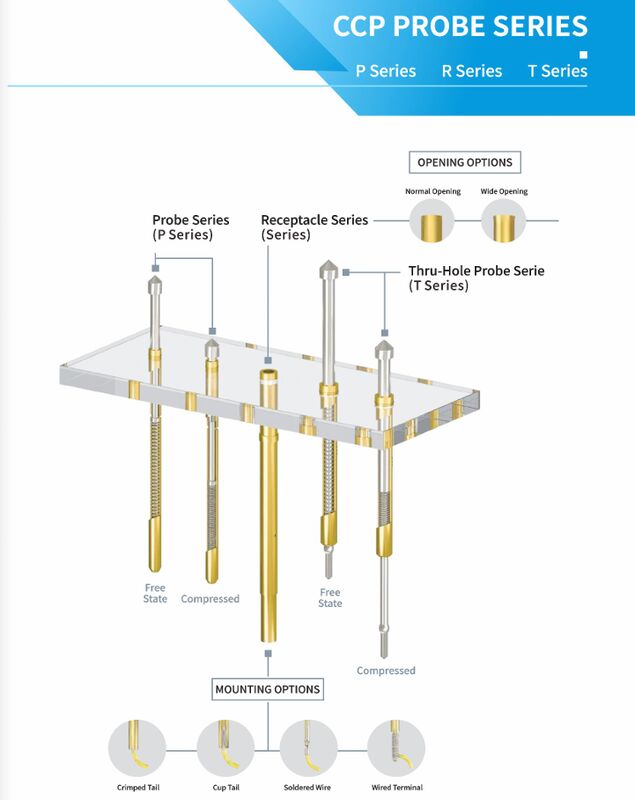

Comparison of different test probe tip types and configurations
Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:

  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance 4
Our probe manufacturing facility
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance 5
Quality control inspection
Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance 6
Packaged probes ready for shipment
