Name: Gold Plated Brass Barrel Spring Test Probe with BeCu/SK4 Plunger and SWP Spring for Precision Testing
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Rumah > Produk > Probe pengujian musim semi >

Gold Plated Brass Barrel Spring Test Probe with BeCu/SK4 Plunger and SWP Spring for Precision Testing

BeCu/SK4 Plunger Spring Test Probe

Bronze Barrel Pogo Pin

SWP Spring ICT Test Probe

Tempat asal:

Tiongkok

Nama merek:

WINNER

Sertifikasi:

ISO9100

Hubungi Kami

Minta Kutipan

Gold Plated Brass Barrel Spring Test Probe with BeCu/SK4 Plunger and SWP Spring for Precision Testing

Rincian produk

Nama Produk:

probe uji ukuran standar

Penyelam:

BeCu/SK4, berlapis emas

barel:

Perunggu, berlapis emas

Musim semi:

SWP, Au di Ni memucat

Tersedianya:

Ukuran khusus tersedia

Lapisan:

Berlapis emas

MOQ:

3000pcs

Wadah:

Berlapis emas kuningan

Peringkat saat ini:

1amp

Kontak Resistance:

maks 50 jutahms

Stroke penuh:

2.00mm

Stroke berperingkat:

1,50MM

Angkatan Musim Semi:

1.0/2.0/3.0N

CEM1:

0.7mm

FR4:

0.7mm

Standar:

-40℃-+80℃

Desain Khusus "C":

-100℃-+200℃

Menyoroti:

BeCu/SK4 Plunger Spring Test Probe

Bronze Barrel Pogo Pin

SWP Spring ICT Test Probe

Syarat Pembayaran & Pengiriman

Kuantitas min Order

3000pcs

Harga

999

Kemasan rincian

Pengepakan netrial atau dengan logo OEM

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C, Western Union, T/T

Menyediakan kemampuan

100000 gulungan per bulan

Produk terkait

High Conductivity Durable Brass Barrel Spring Test Probe for Precision Testing in ICT/FCT Applications

Dapatkan Harga Terbaik

China Supplier ICT test probe P048

Dapatkan Harga Terbaik

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50mΩ Max Contact Resistance for In-Circuit-Test (ICT)

Dapatkan Harga Terbaik

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

Wholesale Price Spring Loaded Test Probes - Model P038

High demand gold plated brass barrel stainless steel spring test probes designed for In-Circuit-Test (ICT) applications. These precision components offer reliable performance and durability for demanding testing environments.

Production Specifications

Product Images

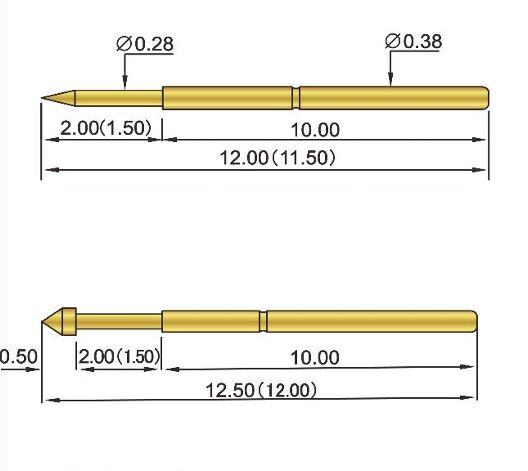

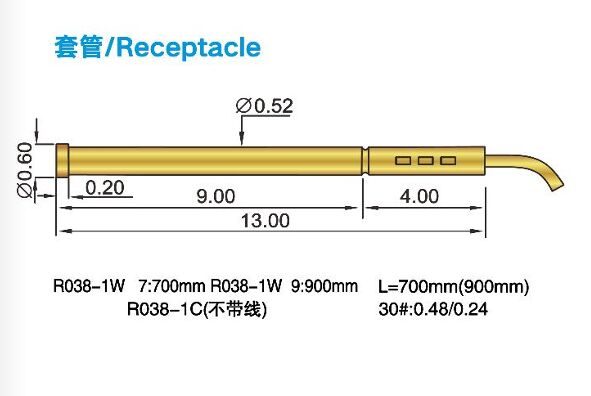

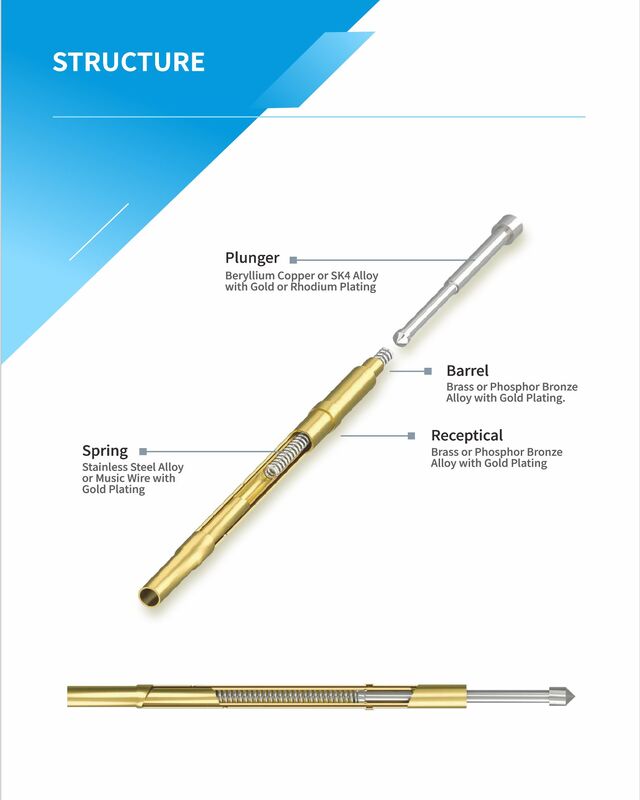

Detailed Component Illustration

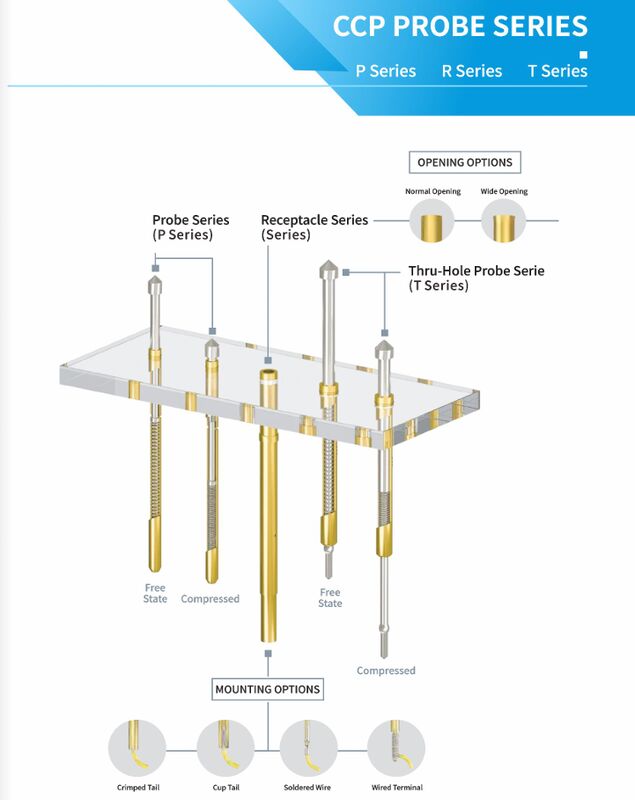

Comparison of different test probe tip types and configurations

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
