Name: High Quality Switch Contact Pin Test Probe YF DE1-038BF32-01C0
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Rumah > Produk > Probe pengujian musim semi >

High Quality Switch Contact Pin Test Probe YF DE1-038BF32-01C0

Tempat asal:

Cina

Nama merek:

WINNER

Sertifikasi:

ISO9100

Hubungi Kami

Minta Kutipan

High Quality Switch Contact Pin Test Probe YF DE1-038BF32-01C0

Rincian produk

Nama Produk:

probe uji pegas

barel:

PB, Palpal Emas

Plunger Bawah:

BeCu/SK4, berlapis emas

Pendorong ATAS:

SK4(Menjadi Cu)/Berlapis Emas

MUSIM SEMI:

SWPB(SUS)/Berlapis Emas

Tersedianya:

Ukuran khusus tersedia

Lapisan:

Berlapis emas

Peringkat Saat Ini:

Hubungi Resistensi:

maks 100 mohm

Bandwidth:

-0.0.08dB @ 19.6GHz

induktansi:

1,17nH

Kapten:

1,45pF

Stroke penuh:

0.6 MM

Stroke berperingkat:

0.45mm

Angkatan Musim Semi:

27gram@0,45mm

Kehidupan Mekanik Melebihi:

200k

Syarat Pembayaran & Pengiriman

Kuantitas min Order

3000pcs

Harga

999

Kemasan rincian

Pengepakan netrial atau dengan logo OEM

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C, Western Union, T/T

Menyediakan kemampuan

100000 gulungan per bulan

Produk terkait

Gold Plated Ultra-Fine Precision Spring Test Probe with Customizable Tip Styles for BGA Testing and Semiconductor Applications

Dapatkan Harga Terbaik

China Supplier ICT test probe P048

Dapatkan Harga Terbaik

CHINA Supply YF-100 Brass Material Spring Contact Probe Pin

Dapatkan Harga Terbaik

Harga langsung pabrik probe uji pin pegas

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

High Efficiency BGA Testing Probes

Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

Production Specifications

Product Images

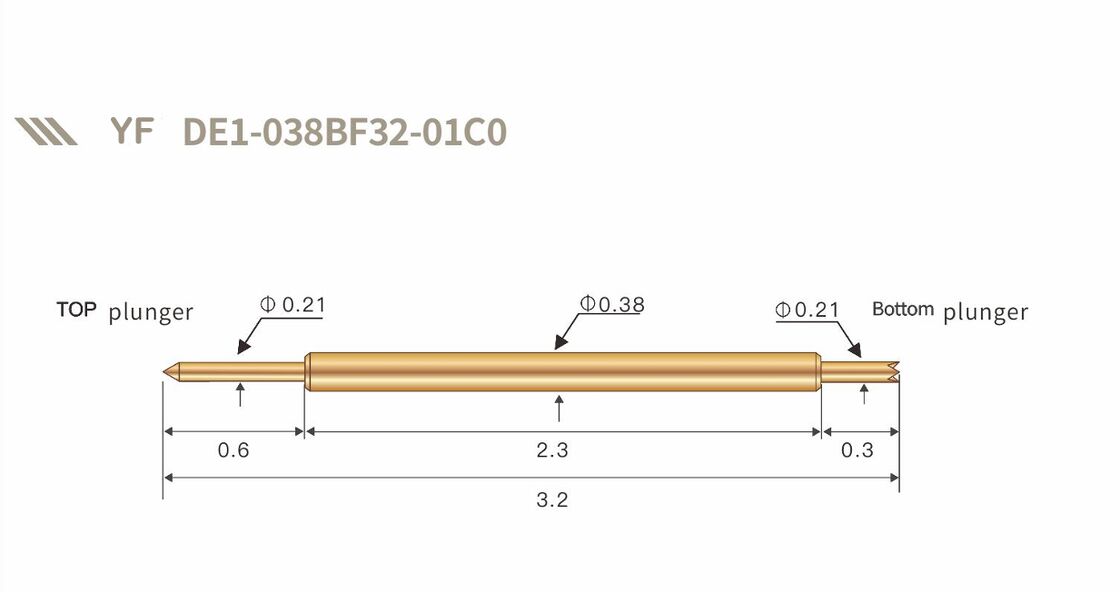

Detailed Component Illustration

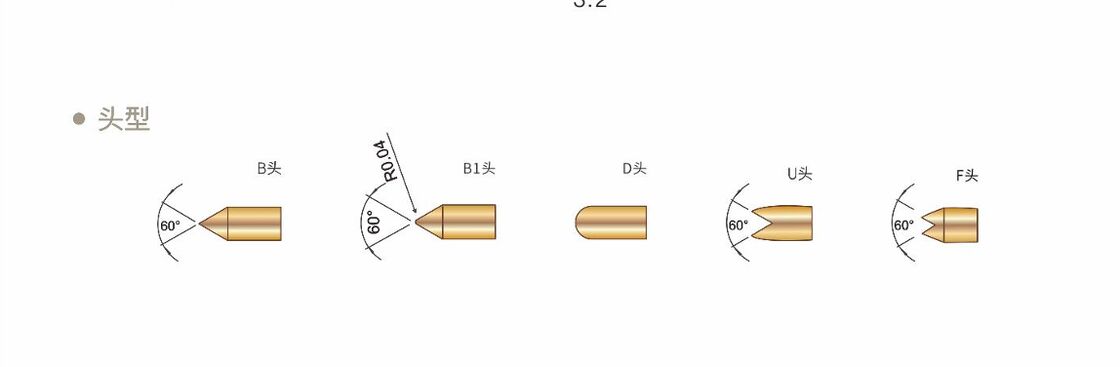

Comparison of different test probe tip types and configurations

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
