Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Testing

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Testing

Gold Plated Spring Test Probe

2A Current Rating Test Probe

Custom Sizes Pogo Pin

Tempat asal:

Cina

Nama merek:

WINNER

Sertifikasi:

ISO9100

Hubungi Kami
Minta Kutipan
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Testing Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Testing Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Testing
Rincian produk
Nama Produk:
probe uji pegas
barel:
PB, Palpal Emas
Plunger Bawah:
BeCu/SK4, berlapis emas
Pendorong ATAS:
SK4(Menjadi Cu)/Berlapis Emas
MUSIM SEMI:
SWPB(SUS)/Berlapis Emas
Tersedianya:
Ukuran khusus tersedia
Lapisan:
Berlapis emas
Peringkat Saat Ini:
2a
Hubungi Resistensi:
maks 100 mohm
Bandwidth:
-0,56dB @ 19,6GHz
induktansi:
1,6nH
Kapten:
1,44pF
Stroke penuh:
0.55mm
Stroke berperingkat:
0.35mm
Angkatan Musim Semi:
24,7gram@0,35mm
Kehidupan Mekanik Melebihi:
200k
Menyoroti:

Gold Plated Spring Test Probe

,

2A Current Rating Test Probe

,

Custom Sizes Pogo Pin

Syarat Pembayaran & Pengiriman
Kuantitas min Order
3000pcs
Harga
999
Kemasan rincian
Pengepakan netrial atau dengan logo OEM
Waktu pengiriman
5-8 hari kerja
Syarat-syarat pembayaran
L/C, Western Union, T/T
Menyediakan kemampuan
100000 gulungan per bulan
Produk terkait
Harga yang bagus High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device on line

High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device

Dapatkan Harga Terbaik
Harga yang bagus Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002 on line

Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002

Dapatkan Harga Terbaik
Harga yang bagus Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for PCB Testing on line

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for PCB Testing

Dapatkan Harga Terbaik
Harga yang bagus Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for IC Testing on line

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for IC Testing

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi Produk

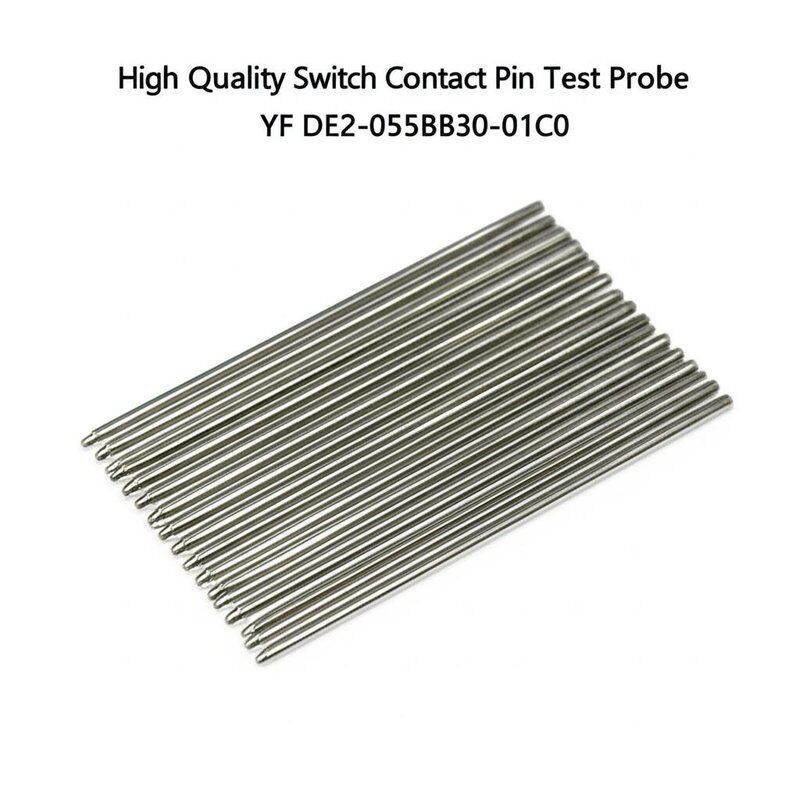

High Quality Switch Contact Pin Test Probe YF DE2-055BB30-01C0
Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities.
Key Product Features
  • High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
  • Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
  • Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
  • Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory
Product Images
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Testing 0
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Testing 1
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Testing 2

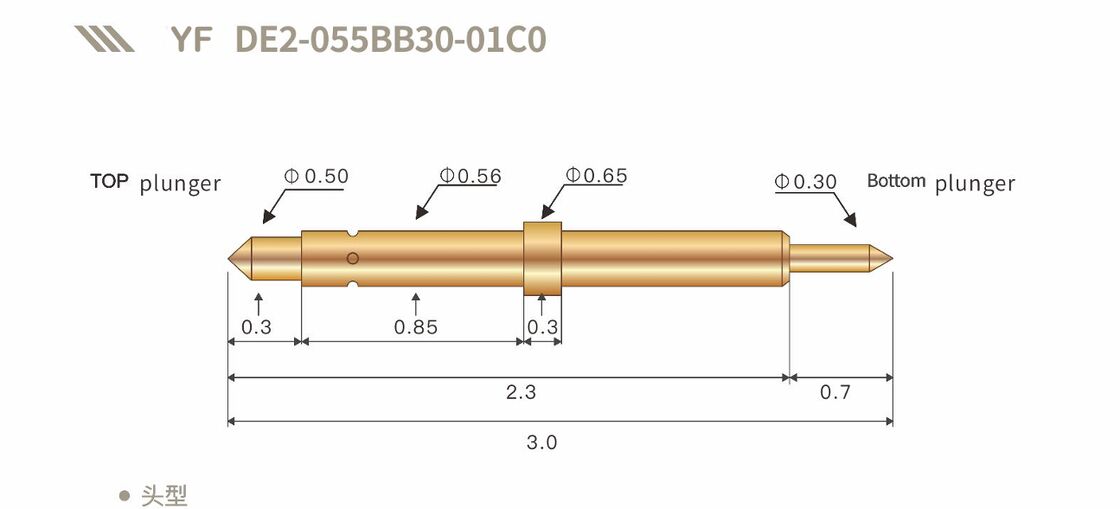

Detailed Component Illustration
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Testing 3

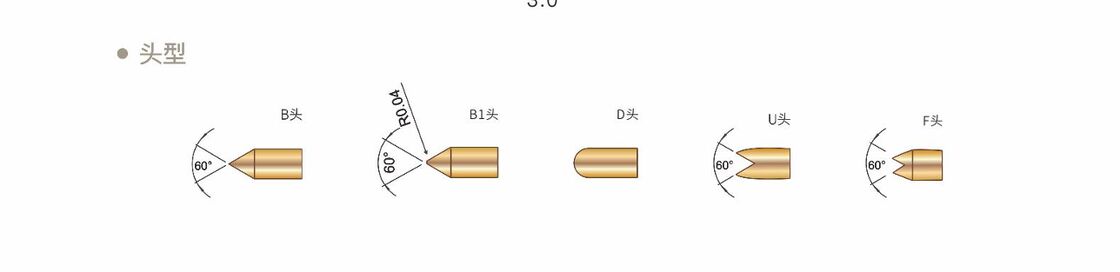

Comparison of different test probe tip types and configurations
Customization Options
SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.
Manufacturing Process
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Testing 4
Our probe manufacturing facility
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Testing 5
Quality control inspection
Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Testing 6
Packaged probes ready for shipment
