Name: Spring Loaded Test Probe Double Ended for ICT, FCT Test Fixtures
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Rumah > Produk > Probe pengujian musim semi >

Spring Loaded Test Probe Double Ended for ICT, FCT Test Fixtures

spring loaded test probe double ended

ICT FCT test fixture probe

spring test probe with warranty

Tempat asal:

Cina

Nama merek:

WINNER

Sertifikasi:

ISO9100

Hubungi Kami

Minta Kutipan

Spring Loaded Test Probe Double Ended for ICT, FCT Test Fixtures

Rincian produk

Nama Produk:

probe uji pegas

barel:

PB, Palpal Emas

Plunger Bawah:

BeCu/SK4, berlapis emas

Pendorong ATAS:

SK4(Menjadi Cu)/Berlapis Emas

Musim semi:

SWPB(SUS)/Berlapis Emas

Tersedianya:

Ukuran khusus tersedia

Lapisan:

Berlapis emas

Peringkat Saat Ini:

Hubungi Resistensi:

maks 100 mohm

Bandwidth:

-0,84dB @ 19,6GHz

induktansi:

1,47nH

Kapten:

1,77pF

Stroke penuh:

3.6mm

Stroke berperingkat:

1.0mm

Kekuatan pegas:

25gram@1.0mm

Kehidupan Mekanik Melebihi:

200k

Menyoroti:

spring loaded test probe double ended

ICT FCT test fixture probe

spring test probe with warranty

Syarat Pembayaran & Pengiriman

Kuantitas min Order

3000pcs

Harga

999

Kemasan rincian

Pengepakan netrial atau dengan logo OEM

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C, Western Union, T/T

Menyediakan kemampuan

100000 gulungan per bulan

Produk terkait

China Supplier Double Ended Pogo Pin Spring Loaded Probe for PCB Testing | Custom Available

Dapatkan Harga Terbaik

China Supplier Double ended Pogo Pin Spring Loaded Probe UF-FT064BD816-001

Dapatkan Harga Terbaik

Spring Loaded Test Probe Double Ended for ICT, FCT Test Fixtures

Dapatkan Harga Terbaik

Double Ended Pogo Pin Spring Loaded Probe for PCB Testing & Semiconductor Inspection

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

YOUFU UF-FT120BD118-001 Dual Head Spring Loaded Pogo Pins

High precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities for semiconductors and SiC wafers.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission

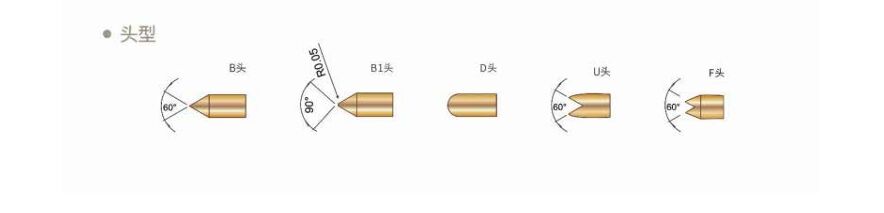

Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

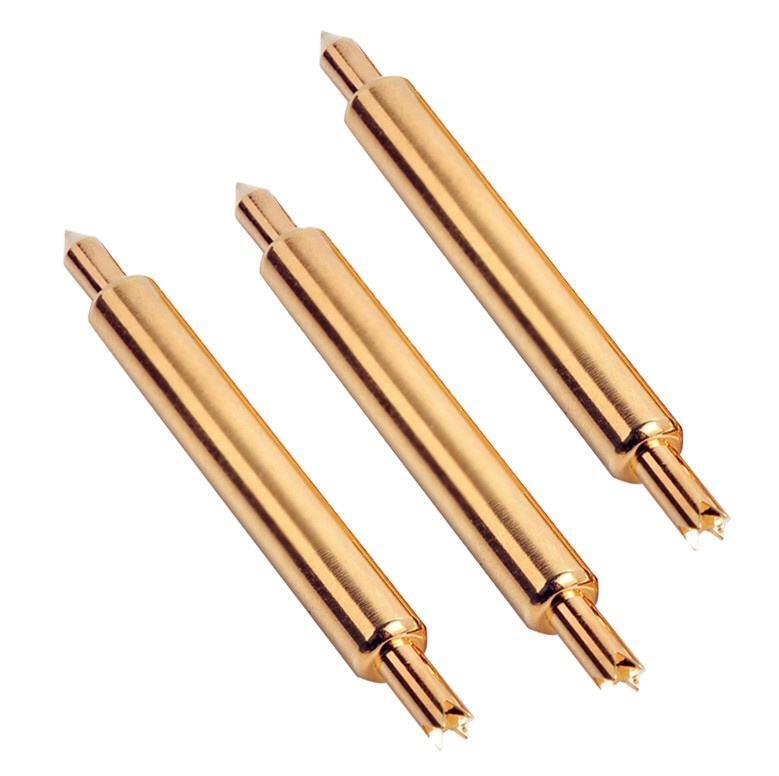

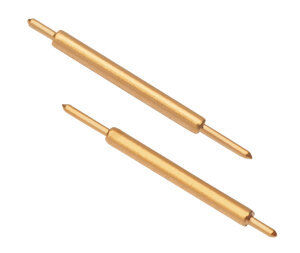

Product Images

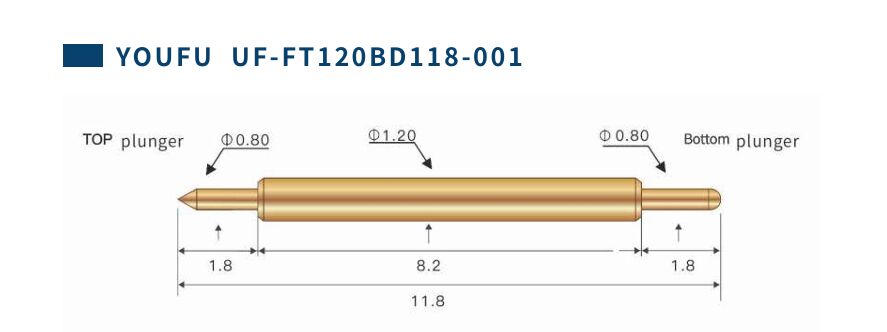

Detailed Component Illustration

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process
